Functional prototypes

CNC Milling Services In Singapore

We produces custom CNC prototypes and end-use production parts in as fast as 1 day

Jigs and Fixtures

Production components in lower volumes

Threaded Holes

We currently support UNC and UNF threads from #2 up to 1/2 in., and metric threads from M2 to M12. Avoid modeling internal threads on your part design.

Highlights Of Our CNC Milling

Text

Minimum stroke width of 0.5mm and spacing between characters on raised text should be 0.5mm or greater. Minimum recessed text depth of 0.3mm. If design permits you can opt for recessed text versus raised.

Radii

Sharp inside corners on a part will be radiused (rounded) as a natural result of the CNC machining process. Resulting radii will be identified before the part is milled.

Dimension

• Size: 6.35mm x 6.35mm

• Nominal Thickness: 1mm

• Hole Diameter: Soft metals Ø0.5 mm, plastics Ø0.6 mm and hard metals Ø1.2 mm

Maximum Extent, Dimensions & Tolerance

Tolerance

• We maintain a machining tolerance of +/- 0.1 mm

• +/- 0.02mm on complex geometries

• Parts may be as thin as 0.5 mm in regions

• Nominal part thickness is above 1 mm

• Maximum depth that can be milled is 50 mm from either side of part

Maximum Extent

• 3 Axis Milling: 254mm x 178mm x 95mm

• 5 Axis Indexed Milling: 254mm x 178mm x 95mm

• Aluminium

• Brass

• Carbon Steel

• Copper

• Mild Steel

• Stainless Steel

• Titanium

Materials

A wide selection of materials for CNC milling available

• ABS

• Acetal

• HDPE

• Nylon

• PEEK

• PEI

• PET

• PVC

Metals

Plastics

• PE-UHMW

• PMMA

• Polycarbonate

• Polypropylene

• POM (Delrin)

• PPSU

• PTFE

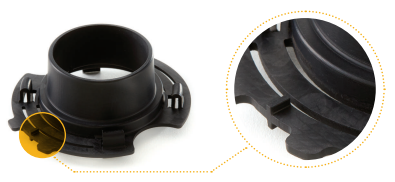

Plastic

Material Abs Color: Black
Finish: As machined with sharp edges removed

Available Finishes

Choose from our our wide variety of surface finishing options for CNC machining

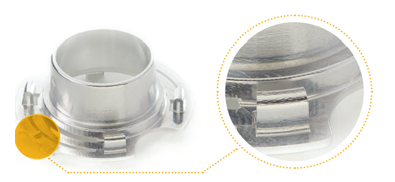

Aluminium

Finish
As machined with sharp edges removed Machined metal parts will be de-burred by breaking the edges, as standard

Steele

Finish: As Machines with sharp edges removed

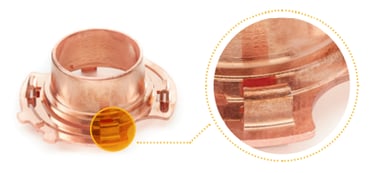

Copper

Finish: As machined with sharp edges removed

1

2

3

4

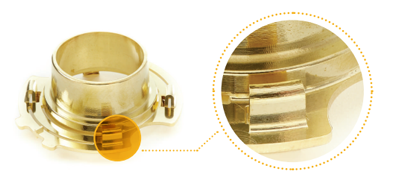

Brass

Finish: As machined with sharp edges removed

5

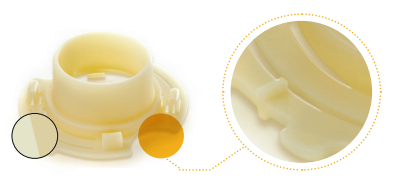

Material Abs Color: Natural, colours may vary
Finish: As machined with sharp edges removed

Finish

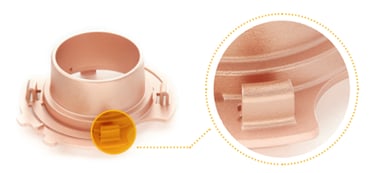

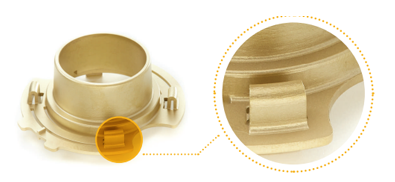

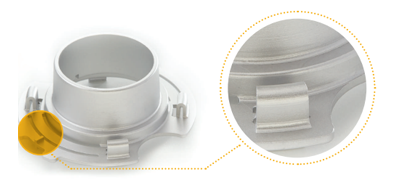

Light Bead Blast
An optional light bead blast will leave the parts with a uniform fine matt finish

Finish: Light bead blast

Finish: Light bead blast

Finish: Light bead blast

Submit Specs

Use our contact form to easily send us your project details. Or alternatively, email us at support@mpasiaengineering, WhatsApp Or Call +65 6580 8544

How Do We Work?

Production

Next, our engineers will seamlessly transform your designs into high-quality components.

Quality Control

We apply our strict quality control process to ensure your components are produced to the highest standard.

Receive Quote

Our team will promptly review your project requirements and provide you with a quote and lead time.

1

2

3

4

5

Receive Components

Your precision-made components are completed, primed for integration into your projects.

Recently Completed Projects

Overall, the quality of the CNC milling products is good, I haven't met any issues with any orders yet. Things have been decent from the beginning. Nixon is just simple and easy to work with.

Cindy Lee, Sales Manager

Sean, I just wanted to provide feedback on the order you recently processed for us and to say thank you for a great job. The feedback I received from our team was excellent. Please pass on our thanks to your team that was involved through the whole process. We look forward to placing more orders with you.

Daphne Chin Yuen, Area Manager

★★★★★

★★★★★

Customers Feedback

Frequently Asked Questions

We need material certificates for our components, can you supply them?

Yes, material certificates are supplied with every delivery as standard.

How long are your delivery lead times?

Our lead times range from 2 to 8 weeks, depending on the simplicity or complexity of your part. We will advise on the delivery timescale when we send your quotation

Are you able to design and product parts if we have just a sample?

Yes, We do reverse engineering. We can extract design and engineering information from most manufactured components.

What are your CNC milling capabilities?

For high quality machined components, tolerances of 10 microns are possible. Mid-range tolerances of +/- 0.05mm are usually achieved.

How will my parts be packaged?

We offer several different options for inside Singapore delivery, depending on the size and type of product. All our packaging is designed to provide effective protection against damage and ensure your orders are delivered in pristine condition.

What Locations We Cover?

We mainly serve businesses in Singapore and Asia

What are your payment terms?

For new customers we ask for the first 3 orders to be paid by pro forma and then a credit account application is submitted for review.

Free Prototype For First Timers

If it is your first time working with us we offer the prototype for FREE* (CAD design is not included)

Credit account is available for customers that have completed 3 productions with us and pass the credit check.

Get Instant Quote For CNC Milling Components

We introduce you to our Account Manager, Sean! Kindly fill out the form below and we will get in touch with you soonest.

Dedicated Account Manager

24 Turnaround For Quotation

First Timers Get Free Prototypes

From Singapore To World

Customer Support

Office line is open from Monday - Friday, 9am to 6pm

Send us a message on WhatsApp for support outside of office hours

Schedule online demo or meeting with our engineers

Connect with our team via email
